Integration for Android

The following describes the necessary steps to integrate Size Adviser into an Android application.

Resources

App identifier

In order to enable your app integration you must provide us with your APP identifier, you can check it in the following link https://developer.android.com/build/configure-app-module#set-application-id

Android Studio Setup

Gradle

Open Gradle Scripts | build.gradle (Project: <your_project> and do the following:

  • Add the following to the buildscript { repositories {}} section of the build.gradle (Project) file:
allprojects {
    repositories {
        maven {
            url "https://bitbucket.org/usizy/usizy-android-sdk/raw/release/"
        }
    }
}
  • Save and close build.gradle (Project: <your_project>).

Open Gradle Scripts | build.gradle (Module: app) and do the following:

  • Add the following to the dependencies {} section of your build.gradle (module: app) file to compile the latest version of the Usizy SDK:
dependencies {
    implementation ('com.usizy.usizybuttonandroid:usizybuttonandroid:+')
}
  • Save and close build.gradle (Module: app)
  • Build your project. Now you can import com.usizy.sizebutton into your app.
Manifest

Open /app/manifests/AndroidManifest.xml

  • Add a uses-permission element to the manifest:
<uses-permission android:name="android.permission.INTERNET"/>
  • Add a meta-data element to the application element:
<activity android:name="com.usizy.sizebutton.ui.FormActivity" />

Usage example

Add UsizyButton in the layout.

<com.usizy.sizebutton.UsizyButton
    android:id="@+id/btnUsizy"
    android:layout_width="wrap_content"
    android:layout_height="wrap_content" />

Retrieve the button and configure it

import com.usizy.sizebutton.UsizyButton
import com.usizy.sizebutton.model.UsizyButtonConfiguration

class MainActivity {

    override fun onCreate(savedInstanceState: Bundle?) {
        super.onCreate(savedInstanceState)
        setContentView(R.layout.activity_main)

        //  Retrieve the button
        val btnUsizy = findViewById<UsizyButton>(R.id.btnUsizy)

        // Configure it
        val config = UsizyButtonConfiguration()
        config.productId = "<PRODUCT_ID>"
        btnUsizy.initialize(config)
    }

}

Identify the user or use anonymous (Optional)

config.user = "AnonymousUser"

You may customize the logo (Optional)

config.logoResId = R.drawable.yourCustomLogoResId

You may customize the icon (Optional)

config.iconResId = R.drawable.yourCustomIconResId

Add listener to recover the recommended size (Optional)

import com.usizy.sizebutton.UsizyButton
import com.usizy.sizebutton.listeners.UsizyButtonListenerAdapter
import com.usizy.sizequeryandroid.model.SaveRecommendResponse

class MainActivity : UsizyButtonListenerAdapter {

    override fun onCreate(savedInstanceState: Bundle?) {
        // ...

        val btnUsizy = findViewById<UsizyButton>(R.id.btnUsizy)
        btnUsizy.setOnSizeListener(this)
    }

    override fun onRecommendedSize(productId: String?, response: SaveRecommendResponse?) {
        // do something
    }
}

Visual customization of the button

As the button is a child of AppCompatButton, common attributes, such as fontFamily or textColor, can be used.

AppCompatButton

For example, to change the fontFamily and the color of the text we can use the following:

<com.usizy.sizebutton.UsizyButton
    android:id="@+id/btnUsizy"
    android:layout_width="wrap_content"
    android:layout_height="wrap_content"
    android:layout_marginLeft="20dp"
    android:fontFamily="monospace"
    android:textColor="@android:color/holo_red_dark" />

We can also set the properties from code, for example to indicate the initial text of the button, we can use the following:

import com.usizy.sizebutton.UsizyButton
import com.usizy.sizebutton.model.UsizyButtonConfiguration

class MainActivity {

    override fun onCreate(savedInstanceState: Bundle?) {
        super.onCreate(savedInstanceState)
        setContentView(R.layout.activity_main)

        //  Retrieve the button
        val btnUsizy = findViewById<UsizyButton>(R.id.btnUsizy)

        // Configure it
        val config = UsizyButtonConfiguration()
        config.productId = "<PRODUCT_ID>"
        btnUsizy.initialize(config)
        btnUsizy.text = "What is my size?"
    }
}
SVG

To change the color of the svg icon of the tag, you can add an entry named "ic_btn_bg" with the desired color, in res/values/colors.xml

Example:

<?xml version="1.0" encoding="utf-8"?>
<resources>
    <color name="purple_200">#FFBB86FC</color>
    <color name="purple_500">#FF6200EE</color>
    <color name="purple_700">#FF3700B3</color>
    <color name="teal_200">#FF03DAC5</color>
    <color name="teal_700">#FF018786</color>
    <color name="black">#FF000000</color>
    <color name="white">#FFFFFFFF</color>
    <color name="ic_btn_bg">#FF0000</color>
</resources>

The svg itself can be substituted if we add to our app, a resource svg in res/drawable/ic_usizy_button.xml

<vector xmlns:android="http://schemas.android.com/apk/res/android"
    android:width="20dp"
    android:height="20dp"
    android:viewportWidth="24"
    android:viewportHeight="24">
  <path
      android:pathData="M0,4C0,1.7909 1.7909,0 4,0H20C22.2091,0 24,1.7909 24,4V20C24,22.2091 22.2091,24 20,24H4C1.7909,24 0,22.2091 0,20V4Z"
      android:fillColor="@color/ic_btn_bg"/>
  <path
      android:pathData="M21.11,2.89C20.8271,2.6056 20.4904,2.3805 20.1195,2.2277C19.7487,2.0749 19.3511,1.9975 18.95,2H13.15C12.34,2 11.57,2.31 10.99,2.89L7.25,6.63L2.9,10.98C2.3284,11.5536 2.0075,12.3303 2.0075,13.14C2.0075,13.9497 2.3284,14.7264 2.9,15.3L8.69,21.1C8.9727,21.3849 9.3088,21.6112 9.6791,21.7659C10.0494,21.9206 10.4466,22.0007 10.8479,22.0017C11.2492,22.0026 11.6468,21.9243 12.0178,21.7713C12.3888,21.6183 12.726,21.3936 13.01,21.11L21.1,13.01C21.68,12.43 22,11.67 22,10.85V5.05C22,4.24 21.68,3.46 21.11,2.89V2.89ZM20,10.85C20,11.13 19.88,11.39 19.68,11.59L15.95,15.33L11.59,19.69C11.18,20.1 10.51,20.1 10.1,19.69L7.21,16.79L4.31,13.89C4.114,13.6916 4.004,13.4239 4.004,13.145C4.004,12.8661 4.114,12.5984 4.31,12.4L12.41,4.3C12.61,4.1 12.87,4 13.15,4L18.95,3.99C19.0887,3.99 19.2261,4.0175 19.3541,4.0709C19.4822,4.1243 19.5984,4.2025 19.696,4.3011C19.7936,4.3996 19.8708,4.5166 19.923,4.6451C19.9751,4.7737 20.0013,4.9113 20,5.05V10.85ZM16,6C17.1,6 18,6.9 18,8C18,9.1 17.1,10 16,10C14.9,10 14,9.1 14,8C14,6.9 14.9,6 16,6Z"
      android:fillColor="#ffffff"/>
</vector>

Sample App

Download our sample app for Android

Technical Documentation

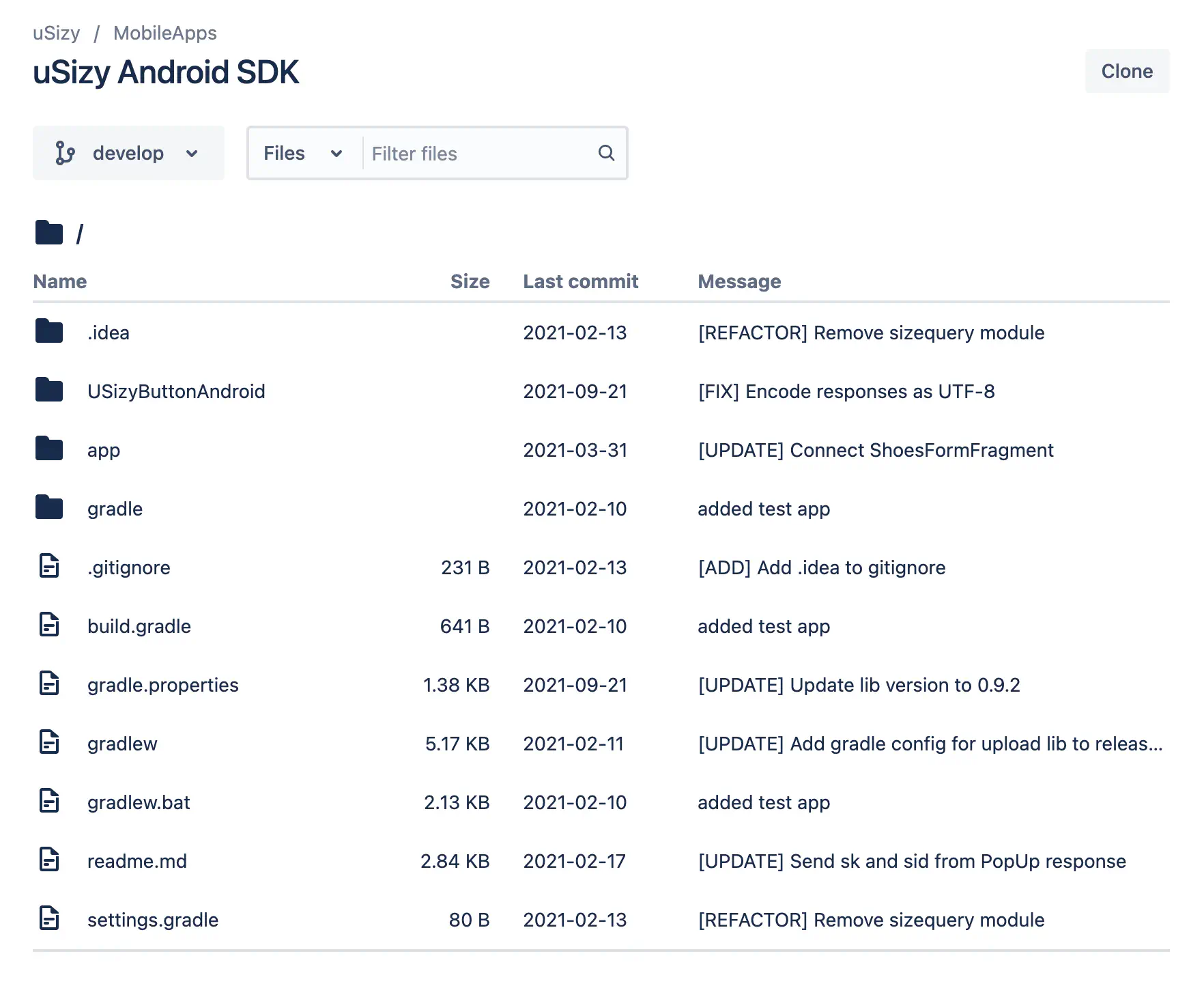

Access our repository for Android apps.
